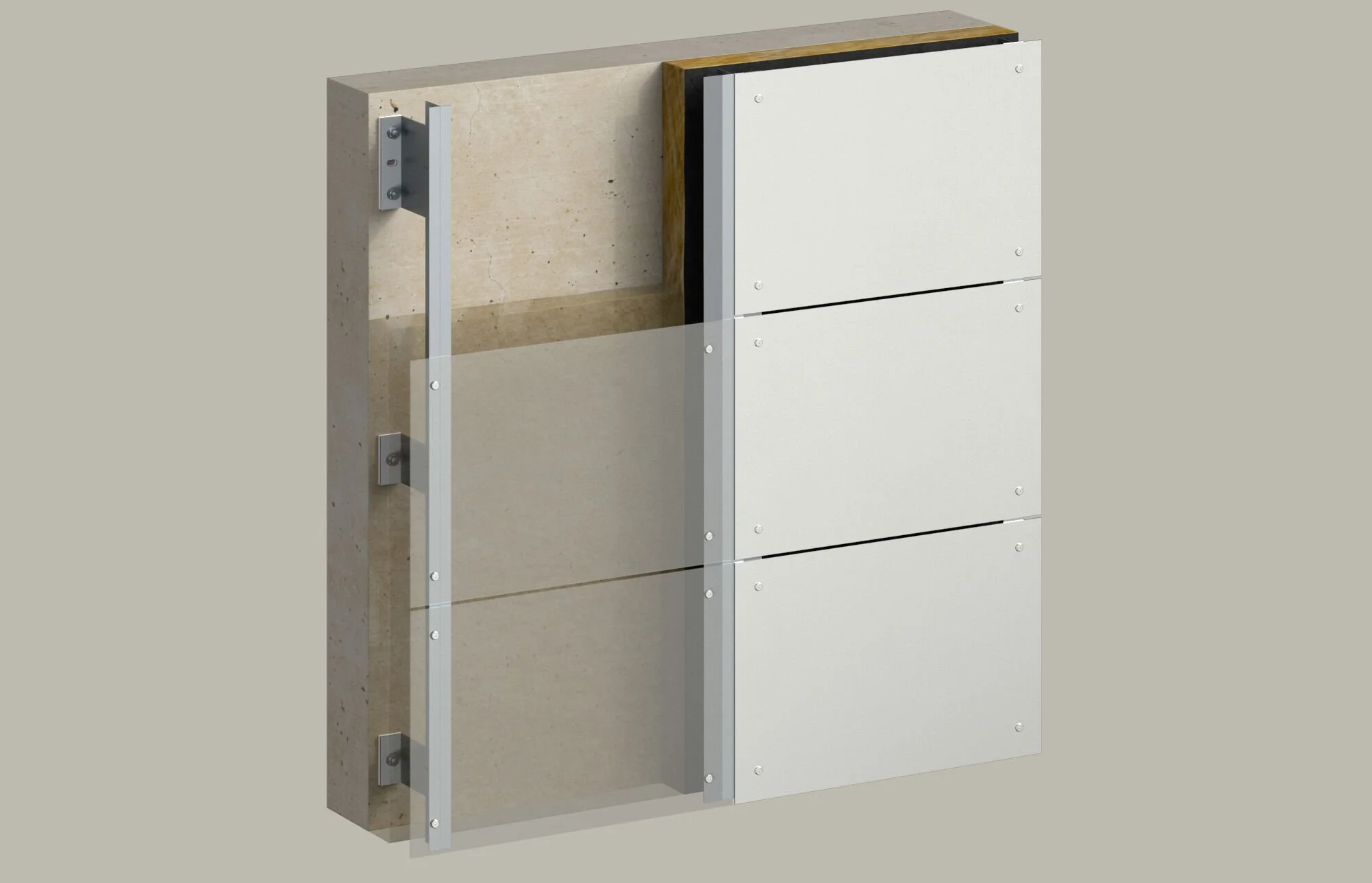

SUB FRAME SYSTEM
Excellent Engineered Bracket and Rail System
Key Features and Benefits
Engineering Excellence
Provides exceptional structural performance, adjustable installation tolerance, and long-term durability for all rainscreen façade applications.
Technical Support
Structural calculations for façade subframes, CAD data and BIM families, bespoke & customised solutions, on-site technical support and guidance.
System Details
✓ BBA certified aluminium subframe
✓ Suitable for masonry, concrete and steel-frame substrates of new and existing buildings
✓ Single and double brackets range depth in 20mm increments to accommodate common insulation thickness’s and cavity depths
✓ Fully engineered based on individual project requirements
✓ Necessary intermediate fixings and panel fixings
✓ Included within the CWCT Test Arrangement
✓ Pre-assembled bracket clip for temporary profile positioning during installation comes with all wall holders
✓ Rapid installation methodology
Our Process
We follow a structured approach to ensure every product is delivered to the highest standards.
Initial Consultation
• Detailed project assessment
• Technical requirements review
• Budget and timeline planning
• ISO accredited supply chain
Design & Engineering
• Custom system design
• Performance calculations
• Material selection
• Technical drawings
Testing & Certification
• CWCT testing standard for sys-temised building envelopes 2005
• BSR compliance
• Fire safety assessment
• Quality assurance checks
• Qualicoat PPC
Service & Support
• Customer care
• Technical support
• Project management
• Aftercare service
• Warranty
Our Commitment
TrueTek is committed to delivering façade solutions that prioritise safety, sustainability, and long-term performance. We invest in continuous research and development to ensure our systems meet evolving building standards and incorporate the latest innovations in façade technology.
